Splitscreen RHD Throttle Kit - Butty's Bits

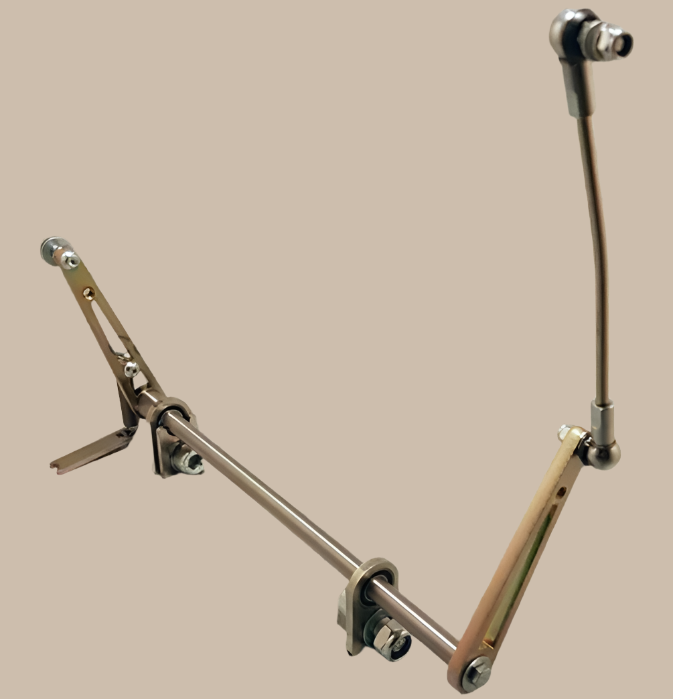

Revamp your driving experience with the Splitscreen RHD Throttle Kit from Butty's Bits. Made for VW Splitscreen 55-67 right hand drive, this bolt on replacement transforms your throttle pedal from a worn on/off switch to a smooth progressive control. Say goodbye to vague driving and hello to a more positive feeling pedal linkage.

Fitting
Remove all the old parts cross shaft ,push rod from pedal and disconnect the throttle cable, then clean the 2 square lugs where the original cross shaft went through the 2 holders , the new kit fits over the 2 square lugs allowing 2 bearing carriers to hang just below the original holders (The kit has to be fitted as it comes assembled remove the mounting bolts and fit the square washer over the square lug then fit the square bearing holder over the same lug and bolt up leave loose while you set the cross shaft position then tighten up and make sure new assembly moves without rubbing or catching on any other components , then connect pedal then accelerator cable) , the bearings will give a far smoother feeling to your accelerator pedal . Also the end plates are 20mm taller than the standard setup so it allows full throttle to be achieved easier on twin carburettor hex bar setups, kit can be altered if you require less cable travel .
